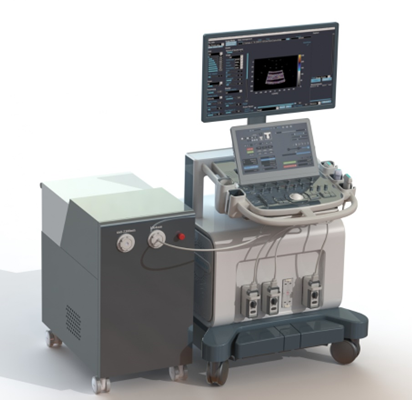

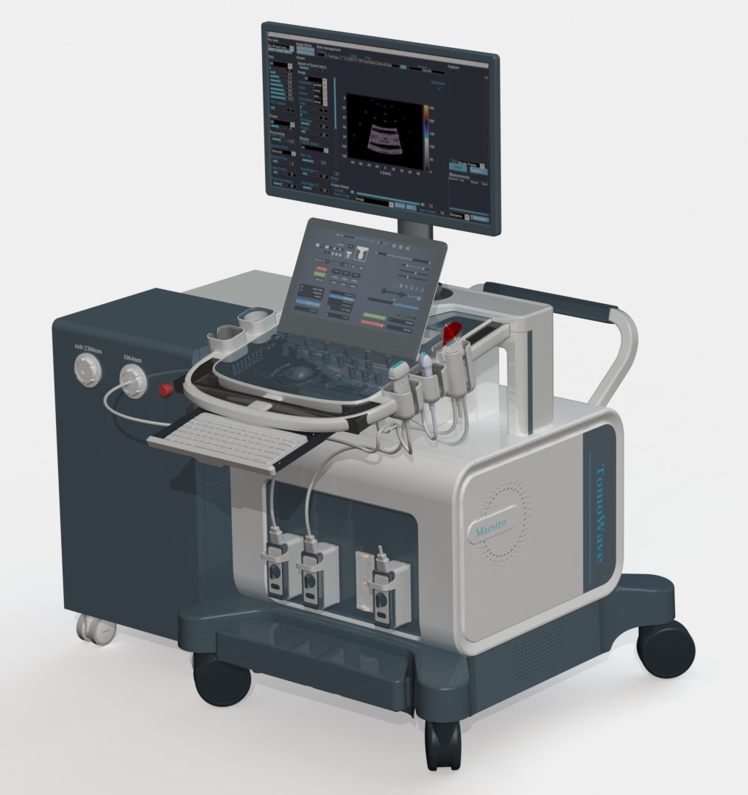

MAESTRO-MD: Universal Premium High-End System dual-modality combining ultrasound and optoacoustics
Clinical Applications: diagnostics, image-guided therapy and surgery
- Premium high-end ultrasound system with all modes of operation including plane-wave ultrafast ultrasound with the power of optoacoustics at minimum additional cost.
- Detection and diagnostics of various cancers and lymph nodes.
- Image guided surgery: cancer, spine, vasculature, cosmetic, etc.
- Monitoring volumetric temperature in the course of minimally invasive thermal therapy of cancer.
- Assessment of blood oxygenation in various organs.
- Differentiation of arteries, veins and nerves.
- Molecular diagnostics of diseases in early stages: diabetic damage of microvasculature, liver disease, Chron disease, monitoring kinetics of contrast agents.

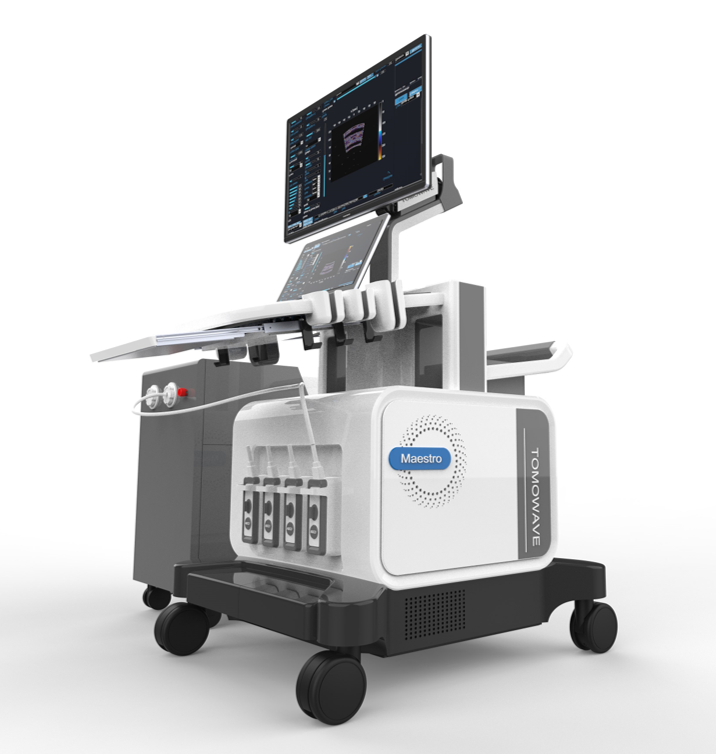

MAESTRO-HR: Universal Premium High-End System for preclinical research in animals and humans
Technical Specifications:
- Spatial resolution: from 0.3mm for deep tissue (up to 50 mm) imaging to 0.05mm for subsurface (up to 8 mm) imaging
- Temporal resolution from 20 fps (OAT) to 300 fps (plane wave USI)
- Contrast/Sensitivity to optical absorption: dma~0.03/cm.
- Spectral imaging from 660 nm to 2300 nm for detection of arteries, veins and nerves and molecular imaging of contrast agents.
- Monitoring temperature distribution with video rate and precision of better than 0.50C.
- High-end ultrasound functions of A,B,C,M modes, color and power Doppler, shear wave elastography, and dynamic microvasculature, plane wave cardiac imaging, vector blood flow imaging of ultrasound contrast agents.
- Functional imaging of [SO2] by optoacoustic tomography.

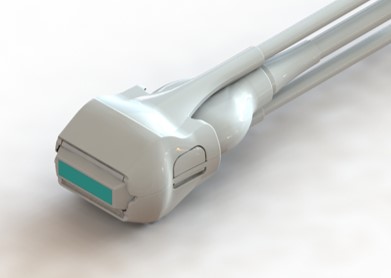

Maestro-HR ultrasonic and optoacoustic probes supported by a 256-channel data acquisition system

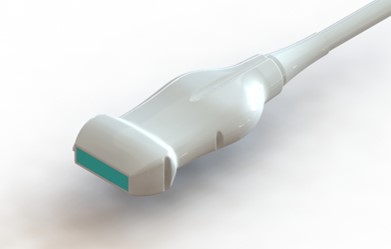

High Frequency Probes
| MODEL | TYPE | FREQUENCY | APPLICATIONS |
|---|---|---|---|
| TWHF-65 | LINEAR | &65-35 MHz | Embryos, microvasculature, rat skin, zebrafish, mouse and rat eye anatomy |
| TWHF-42 | LINEAR | 42-18 MHz | Mouse, rat cardiovascular abdomen, reproductive system, rabbit eyes |
| TWHF-22 | LINEAR | 22-14 MHz | Rat, Rabbit cardiovascular, abdominal |
Deep Tissue Imaging Probes
| MODEL | TYPE | FREQUENCY | APPLICATIONS |
|---|---|---|---|
| TWDT-14-F | LINEAR | 14-6 MHz | Rat, Rabbit cardiovascular, abdominal, mouse brain |
| TWDT-11-F | LINEAR | 11-4 MHz | Large animal abdomen, rat and rabbit cardiovascular |
| TWDT-04-F | PHASED | 4-0.1 MHz | Large animal cardiovascular, abdominal, large vasculature |

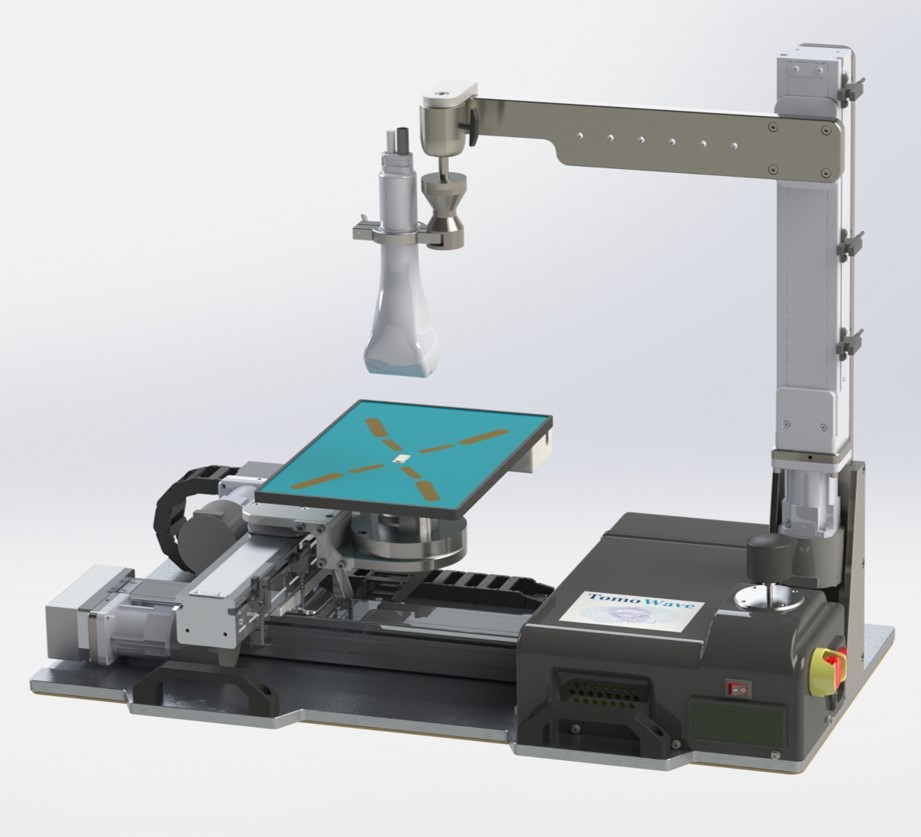

Computer-controlled Probe holder for Maestro

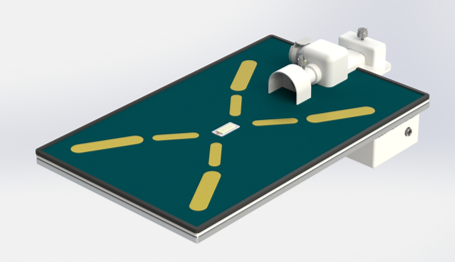

Animal platform with
physiological monitoring
under adjustable platform
temperature:
Simultaneously controls
EKG, body temperature,
and respiratory rhythm of
experimental animals in
real time.
3D position adjustment,
High-strength alloy frame,
Platforms for mouse and rat

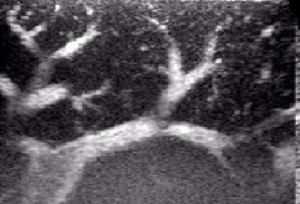

Example: high-resolution ultrasound images: anatomy and vasculature

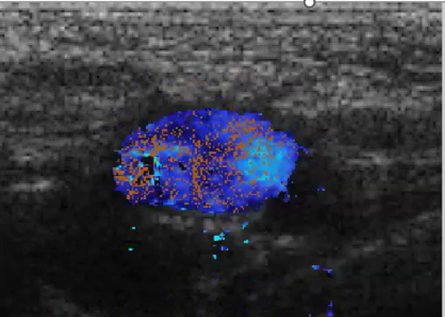

Cancer: accumulation of targeted agent

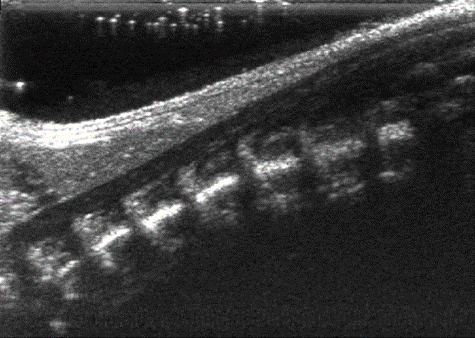

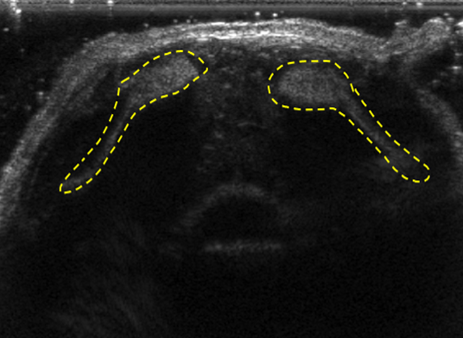

Mouse: spine vertebra

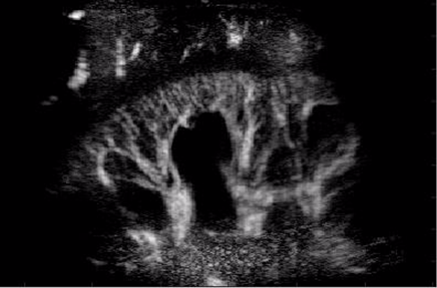

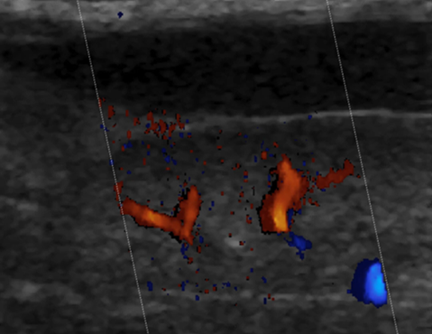

Mouse: kidney Doppler
Kidney: high-resolution processing
Mouse: scapular fat
Pig Artery: Vector Doppler Flow

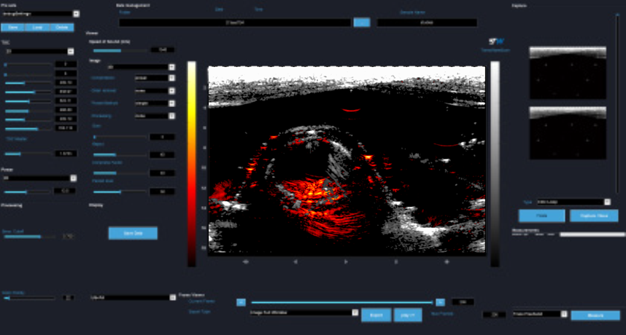

Universal Design of Maestro for System Control
Maestro serves as an Engine (data acquisition) of other modular systems
ARIA:
preclinical research
End Users:
End Users: University Labs, Pharma Companies, CROs
MAESTRO:
universal clinical handheld system
End Users:
Hospitals, Imaging Centers, Surgery Centers, Specialist practices

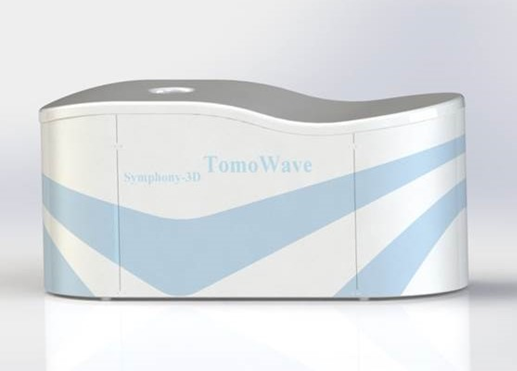

SYMPHONY:
breast cancer care
End Users:
Breast Imaging Centers, Radiology Clinics, Hospitals
